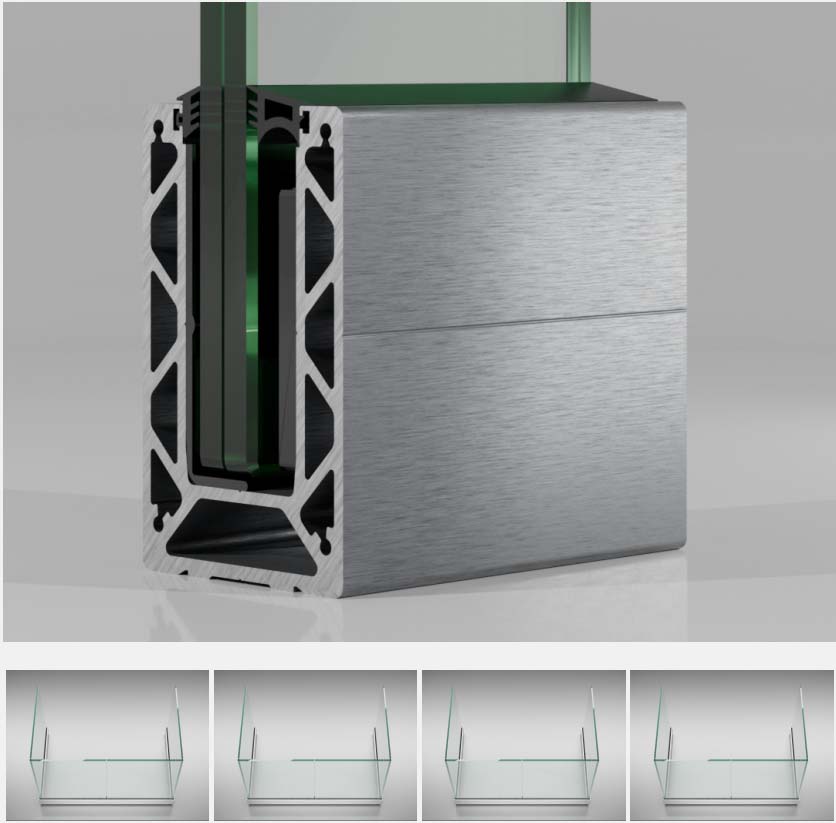

SV 75 UT

Top Mount Type

ABOUT OF

STARTS FROM
€137.00

SV 75 UT PER METER

Materials:
AW6063-T6 aluminium (anodised or RAL powder)
A4 stainless-steel fixings (ISO 3506)
UV-resistant EPDM seals
Glass fiber-reinfoced adjustment mehcanism

Dimensions:
118 x 73 x 5000 mm

System include:
SV75-UT base chanel, adjustment kit (wedges & EPDM glazing gaskets (set) Cover trims & end caps
Installation guide

Colors in stock:

DURABILITY

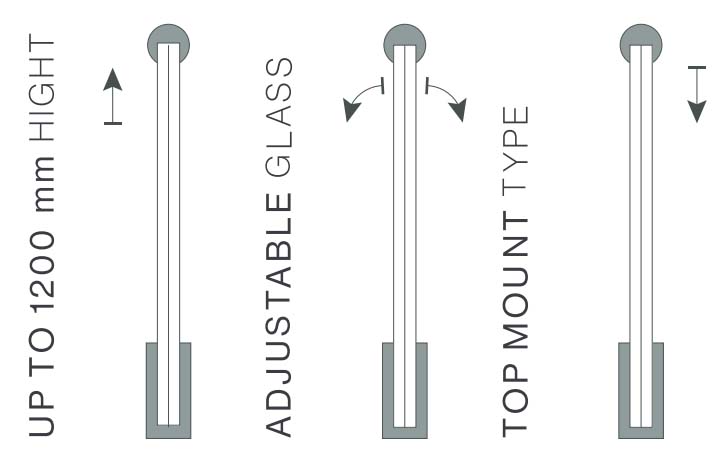

WHY CHOOSE SV 75 UT

Highest stiffness in the series – engineered for minimal deflection
Up to 2 kN line load with standard laminated glass

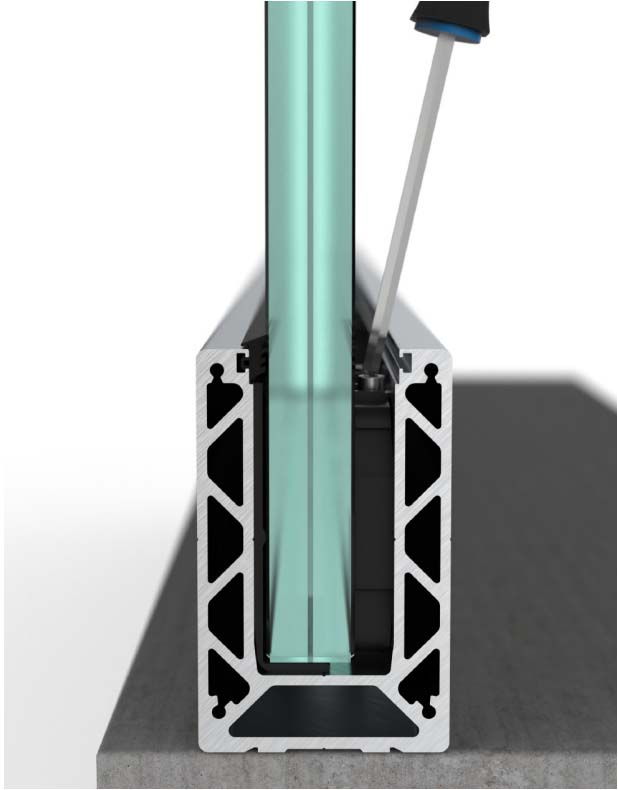

Interior-side installation (M5) for safe, fast, precise alignment
Long-life components: A4 stainless, UV-resistant EPDM,
GF-reinforced wedges
Available top-mount / side-mount with finishing covers
Service-friendly: easy access to adjustments, low maintenance

TECHNICAL SPECIFICATION

1	Lenght of the profile	5000 mm / 2000 mm
2	Height base chanel	118 mm
3	Width base chanel	73 mm
4	Weight per meter of profiles	6.408 kg
5	Profiles material	AW6063-T6
6	Recomendet anchors	INOX A4

LAMINATED GLASS COMPOSITIONS

1	17.14mm – 17.52mm	8 + 1.14 + 8	8 + 1.52 + 8
2	21.14mm – 21.52mm	10 + 1.14 + 10	10 + 1.52 + 10
3	25.14mm – 25.52mm	12 + 1.14 + 12	12 + 1.52 + 12

COMPONENTS OF THE SYSTEM

1	Double tempered glass with PVB interlayer
2	EPDM rubber seals
3	Adjustment mechanism
4	Chemical anchors
5	Adjustment pad 3.5mm
6	Aluminium proifile sv-75-UT

Aluminium

Stainless steal

Glass railing

SV 75 UT
